PV Connector

PV Connector

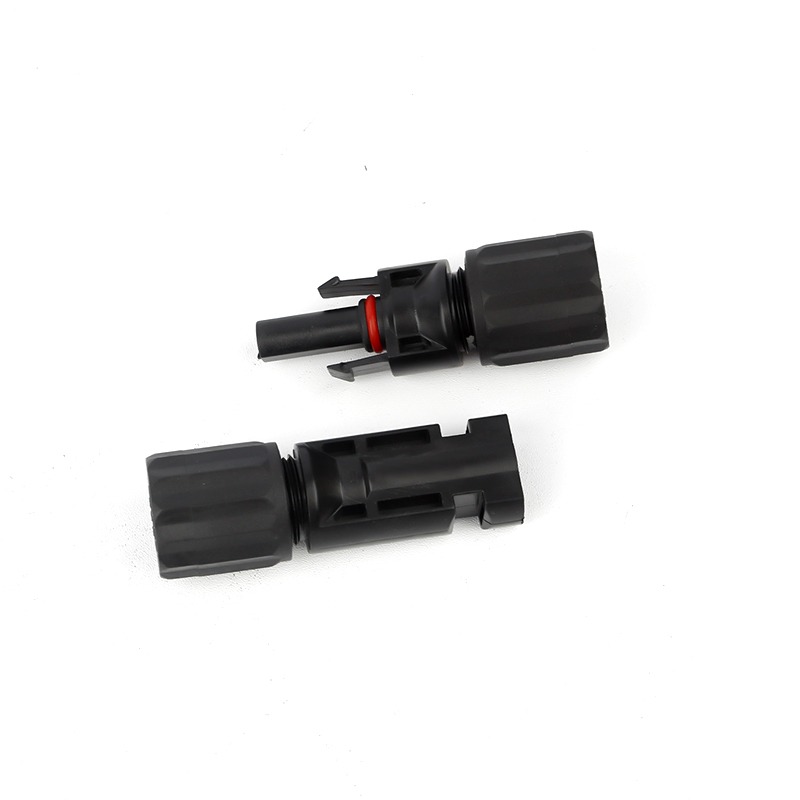

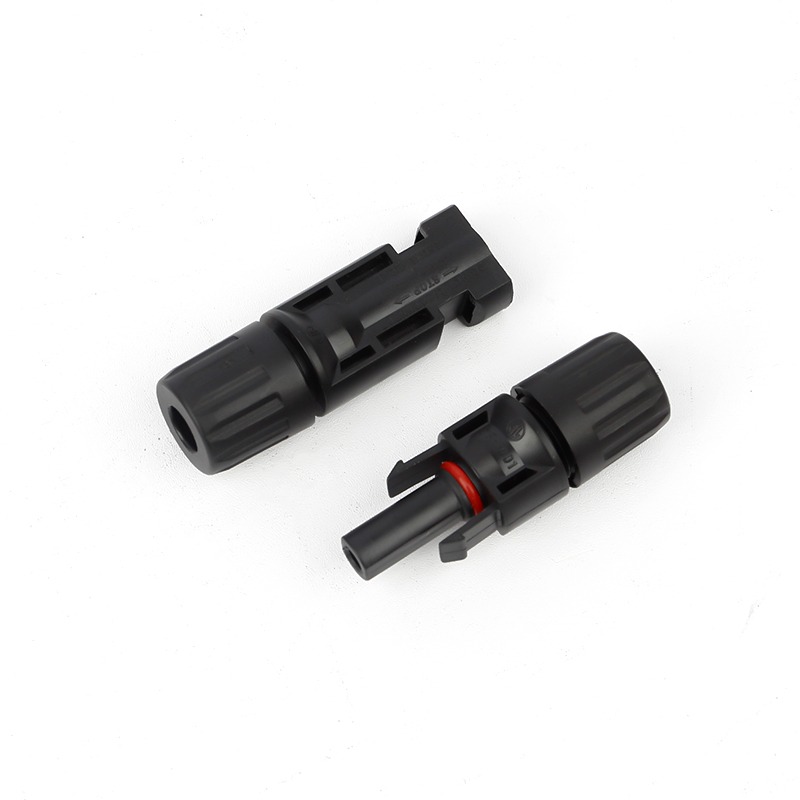

The PV Connector offers robust connectivity solutions for solar panel installations, ensuring reliable performance and durability in demanding environments. With versatile options and high-quality materials, these connectors are designed to meet the specific needs of solar energy systems.

• Connector Type: General
• Rated Voltage: 1000V DC, 1500V DC
• Rated Current: 17A(1.5mm²), 22A(2.5mm²), 30A(4.6mm²)
• Test Voltage: 6000V DC
• Ambient Temperature Range: IEC: -40℃ ~ +90℃, UL: -40℃ ~ +75℃
• Upper Limiting Temperature: IEC: +105℃
• Degree of Protection, Mated: IP67
• Contact Resistance of Plug Connector: ≤0.5mΩ
• Contact Material: Copper alloy, Tin plated
• Insulation Material: PC/PPO
• Locking System: Snap-in
• Connector System: φ4mm
• Flame Class: UL94-V0
• Safety Class: Ⅱ
• Salt Mist Spray Test, Degree of Severity 5: IEC 60068-2-52

USFULL PV Branch Connector

The USFULL PV Branch Connector offers reliable connectivity solutions for solar panel installations, ensuring efficient power distribution and system performance. With a range of configurations and high-quality materials, these connectors are designed to meet the demands of solar energy applications.

• Connector Type: 2T/3T/4T/5T/6T
• Rated Voltage: 1000V DC
• Rated Current: 20A(4mm²), 30A(6mm²)
• Test Voltage: 6000V DC
• Cable Outer Diameter: 2.5mm² ~ 6mm²
• Ambient Temperature Range: -40℃ ~ +110℃
• Degree of Protection, Mated: IP67
• Contact Resistance: ≤1mΩ
• Insulation Resistance: >500mΩ
• Contact Material: Copper alloy, Tin plated
• Insulation Material: PPO
• Terminal Connection: Crimping
• Flame Class: UL94-V0
• Safety Class: Ⅱ

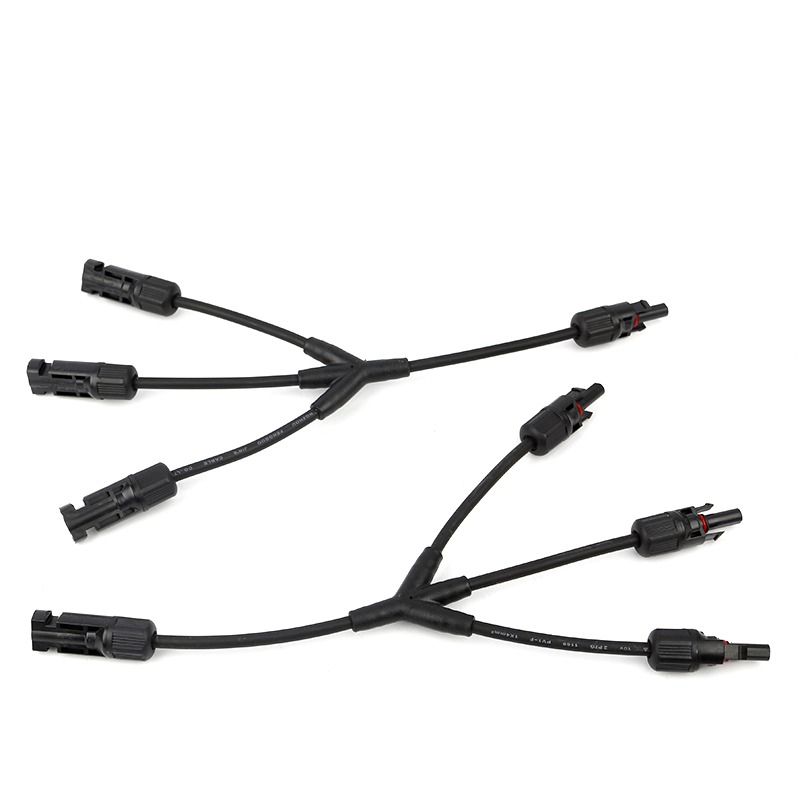

USFULL PV Y Branch Connector

The USFULL PV Y Branch Connector provides efficient connectivity solutions for solar panel installations, allowing for easy branching of cables and efficient power distribution. With durable construction and high-quality materials, these connectors ensure reliable performance in various solar energy applications.

• Connector Type: 2Y/3Y/4Y/5Y/6Y
• Rated Voltage: 1000V DC
• Rated Current: 20A(4mm²), 30A(6mm²)
• Test Voltage: 6000V DC
• Cable Outer Diameter: 2.5mm² ~ 6mm²
• Ambient Temperature Range: -40℃ ~ +110℃
• Degree of Protection, Mated: IP67
• Contact Resistance: ≤1mΩ
• Insulation Resistance: >500mΩ
• Contact Material: Copper alloy, Tin plated
• Insulation Material: PPO
• Terminal Connection: Crimping
• Flame Class: UL94-V0
• Safety Class: Ⅱ

These connectors provide reliable and efficient connectivity solutions for solar panel installations, ensuring optimal performance and durability in various environmental conditions.
